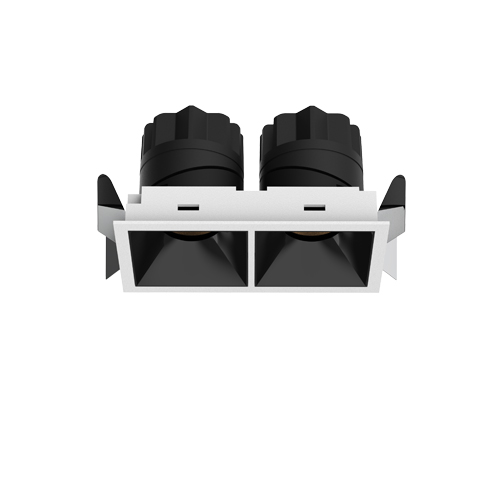

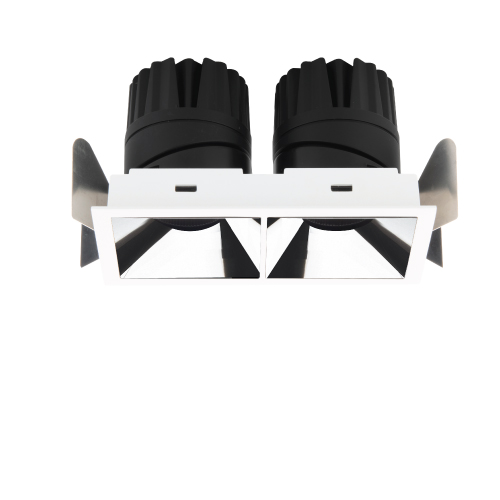

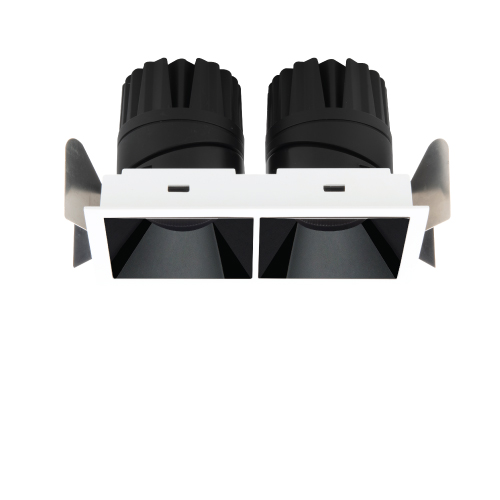

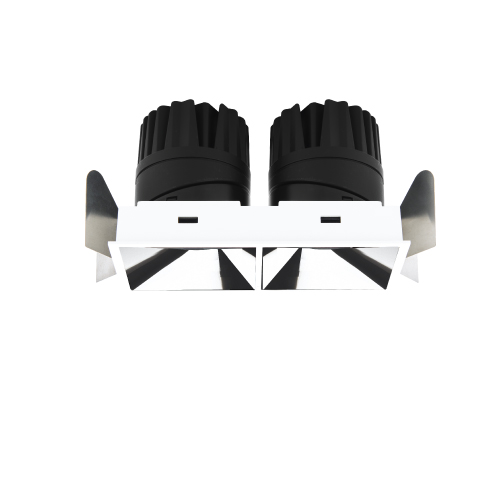

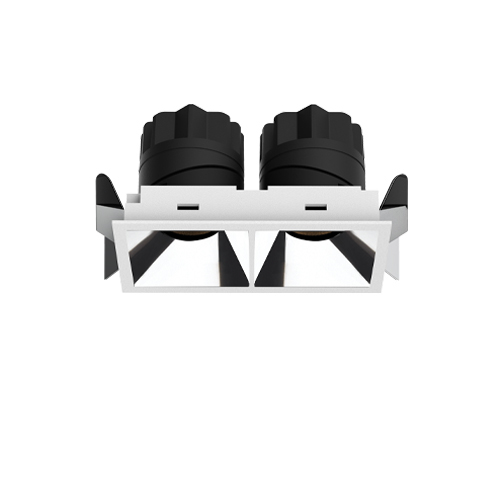

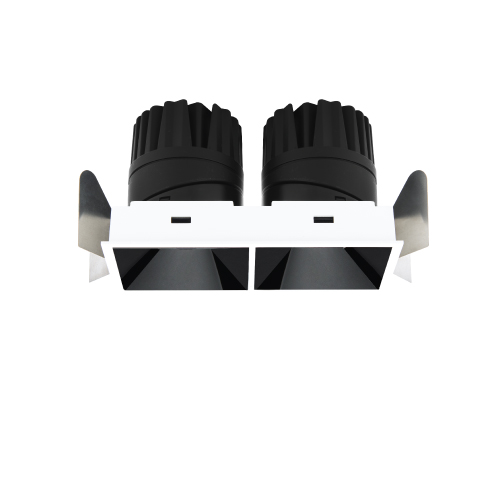

下照調角一體化筒燈，整燈封密式設計，調角過程中無漏光。全新的隱光技術帶來良好的防眩光性能及顏色一致性控制，具有舒適的出光效果。模組化設計，現場可自由拆卸并更換反射器和燈體。

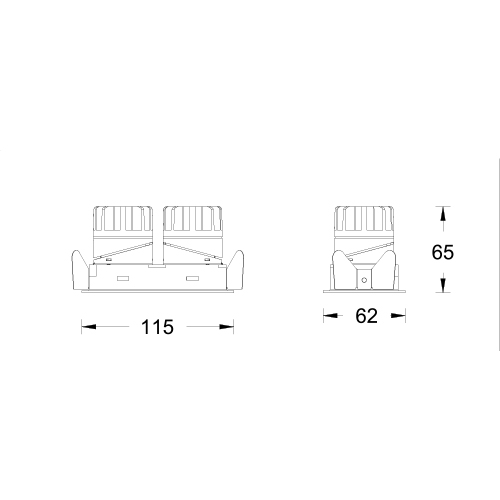

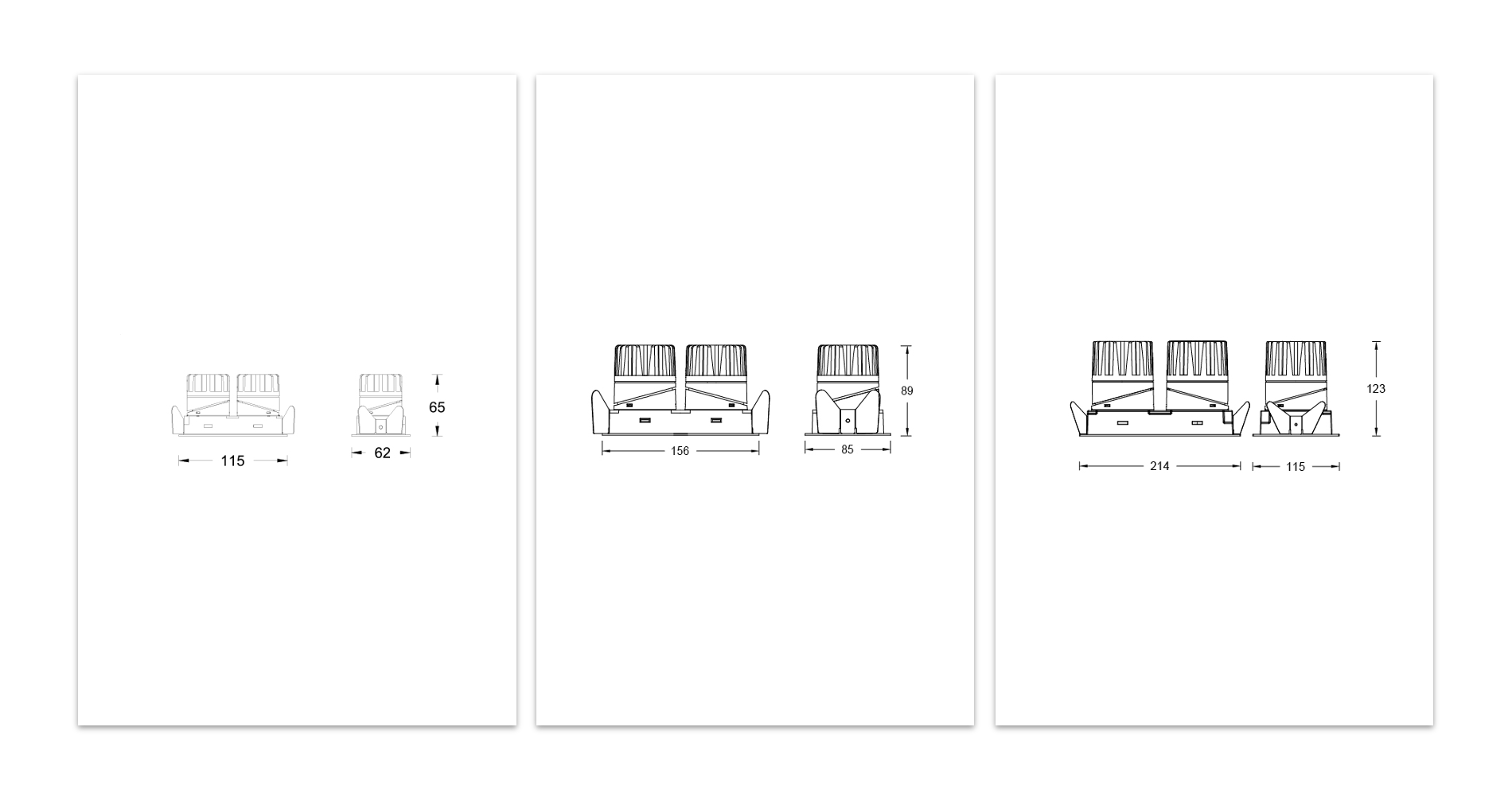

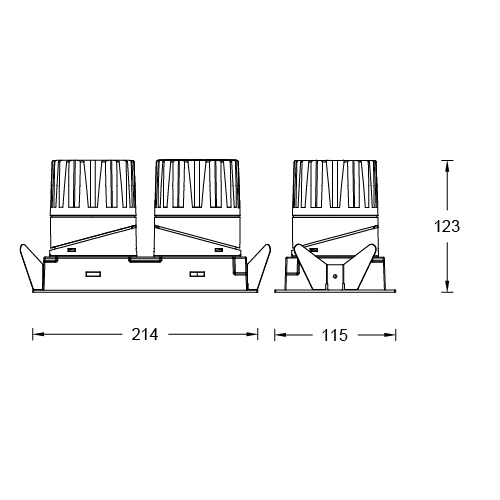

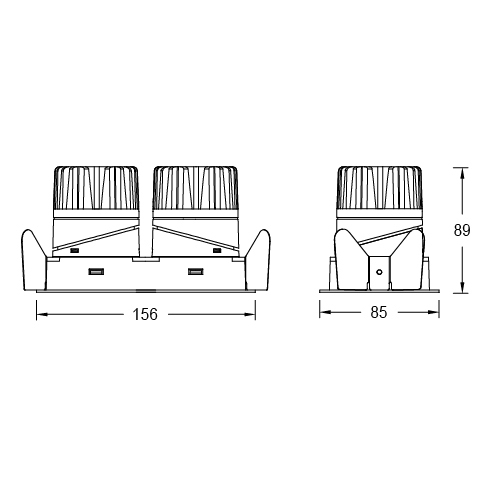

2/3/4 產品尺寸預覽圖
ULTRA
ULTRA
ULTRA

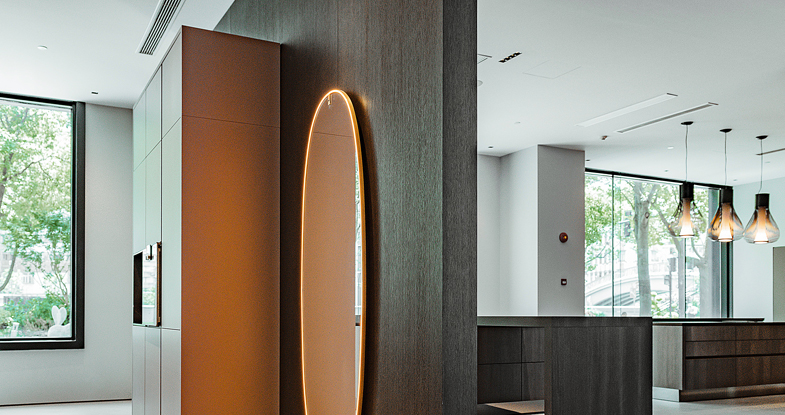

SieMatic西曼帝克上海旗艦店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 5 Rectangular Trim | 205 COB 2*5W 207 COB 2*7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 5 Rectangular Trim | 207 COB 2*7W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 208 COB 2*8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |

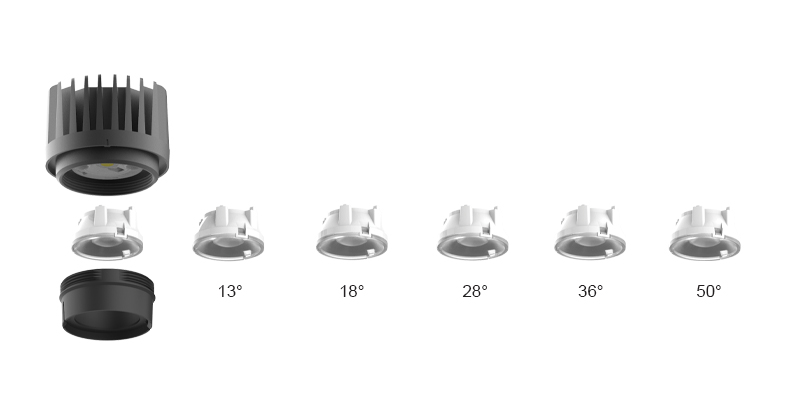

MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | N No Driver A DALI | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 208 COB 2*8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 213 COB 2*13W 218 COB 2*18W 225 COB 2*25W | E On-Off D 0-10V Dimming | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 225 COB 2*25W | N No Driver A DALI | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：MTN25-205E-230SWT
