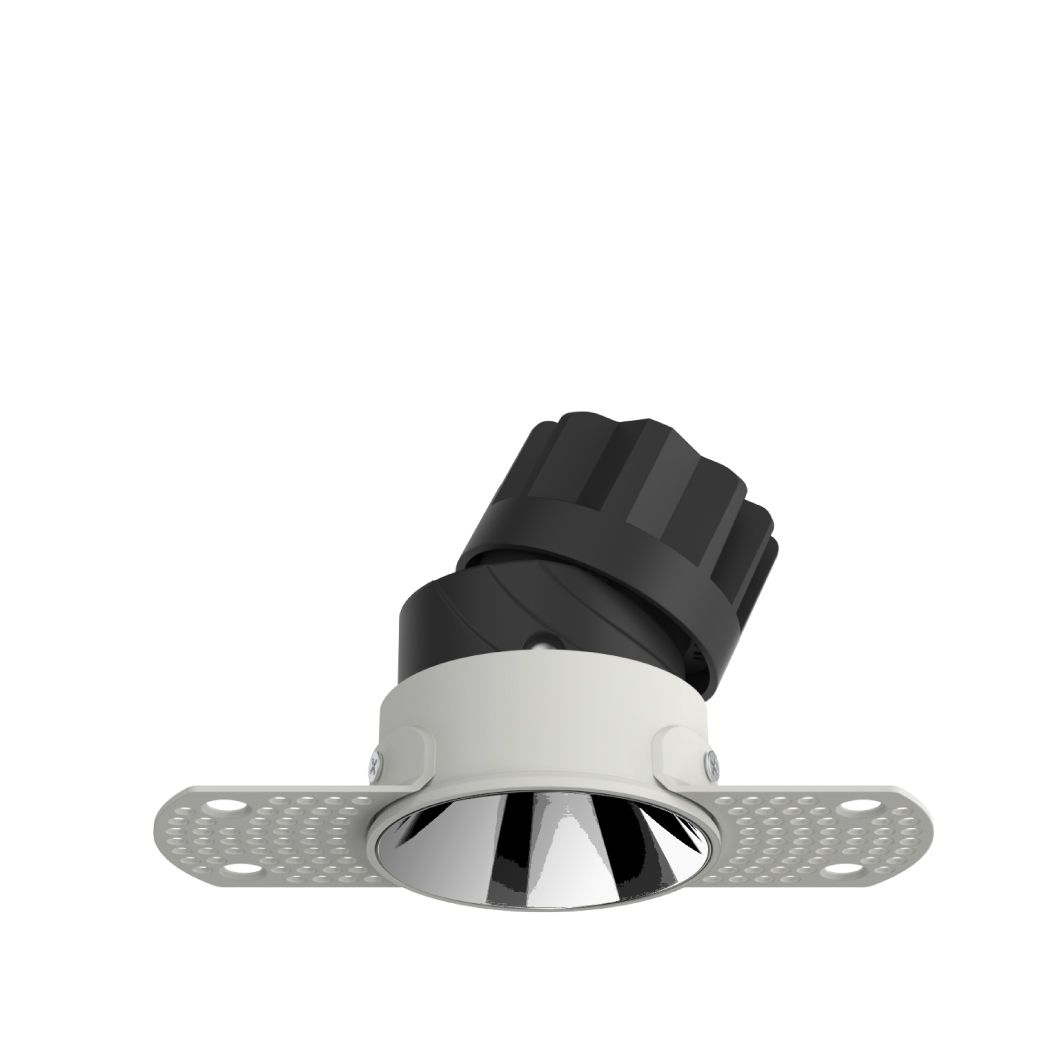

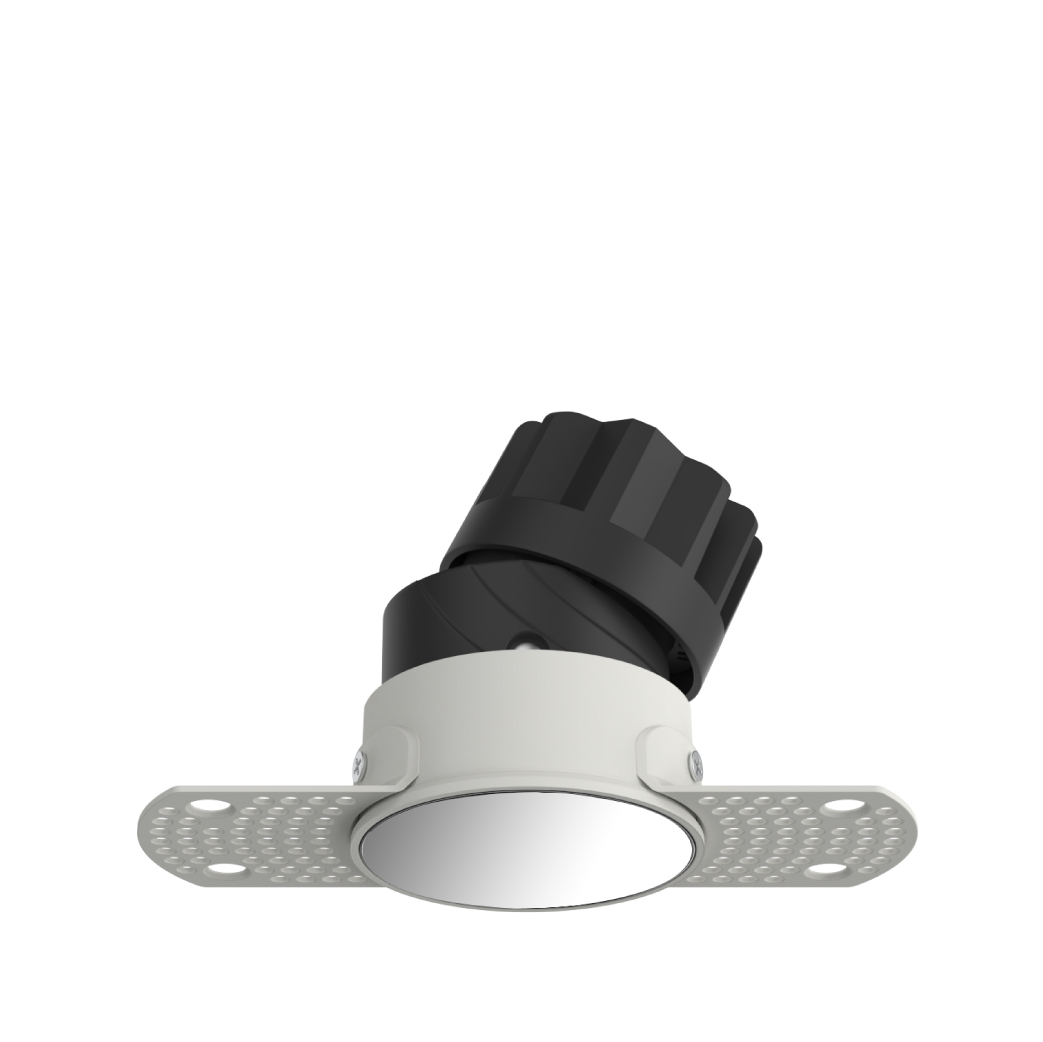

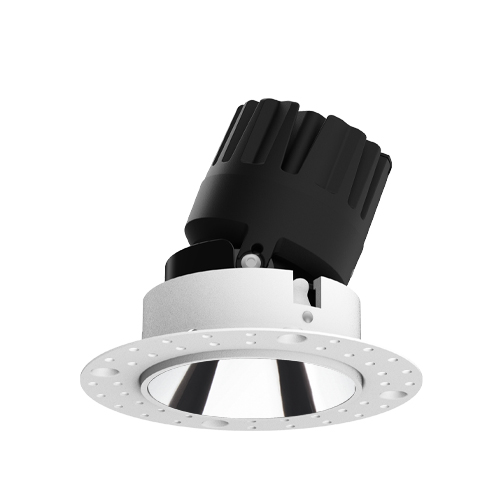

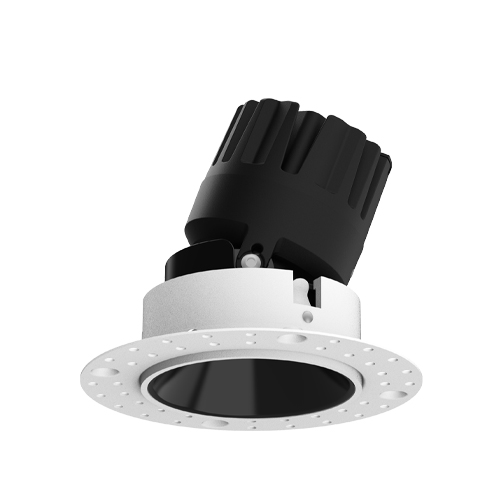

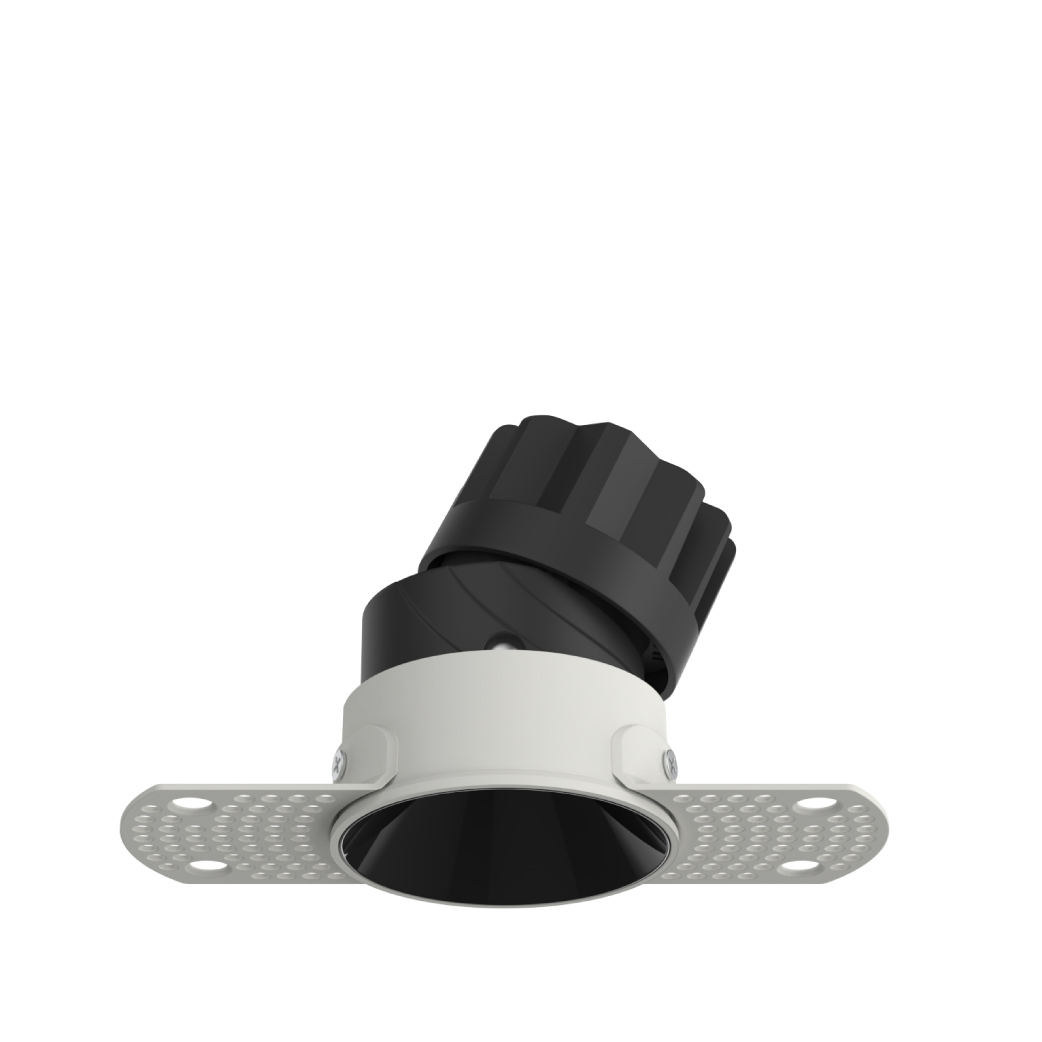

ELANA Pro圓形筒燈，完美融合下照和調角功能一體化，讓您不再為選型而糾結。通過透鏡精準配光，并搭配高品質反射器，帶來舒適視覺感受并保證光斑的完整性。特別適用于高檔酒店，商業(yè)及辦公等公共空間。
下照的穩(wěn)定、調角的靈活，兼而有之
蜂窩+40°防眩光角反射器，雙重保障，提供極致舒適視覺體驗
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 2 2” | 2 Round Trimless | LM05 COB 5W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 2 2” | 2 Round Trimless | LM07 COB 7W | A DALI N Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM13 COB 13W | A DALI N Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
示例：DLH32-LM10-E230SWT， 15°出廠自帶蜂窩，其他角度不帶。
