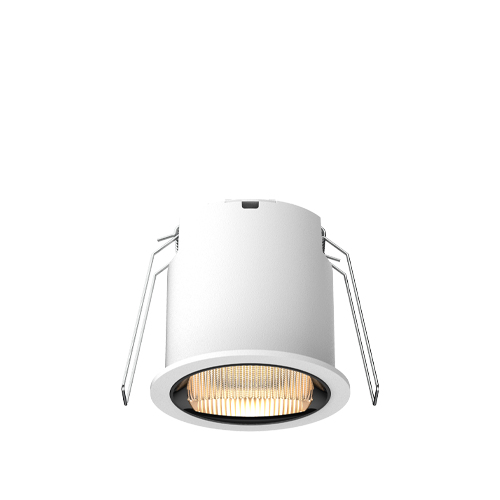

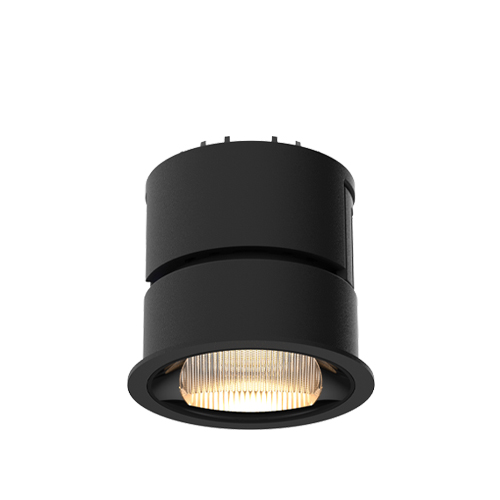

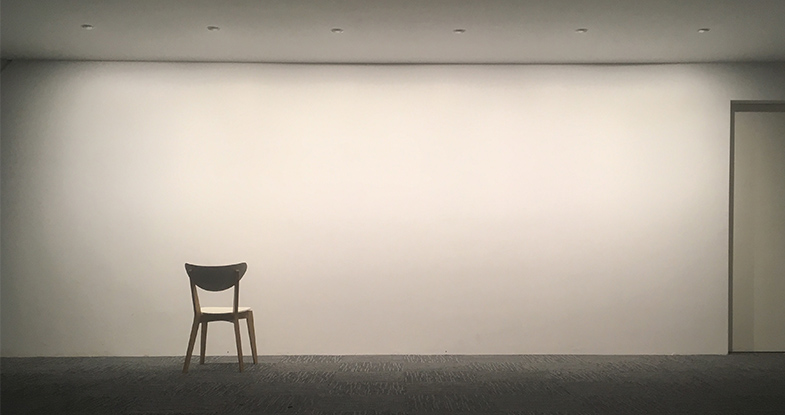

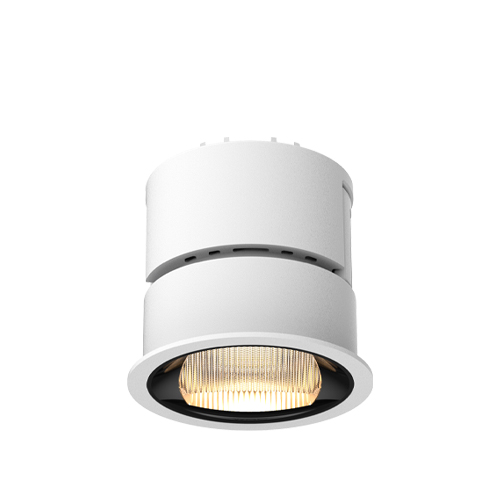

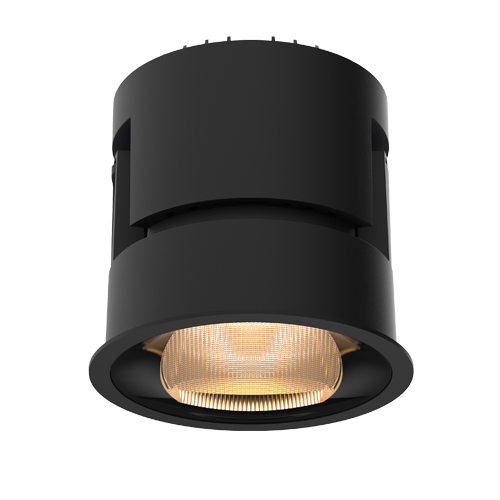

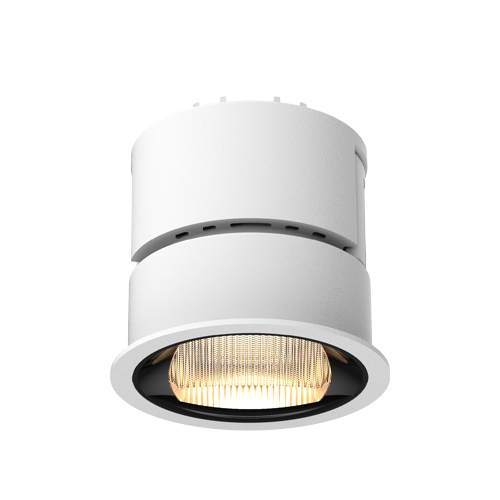

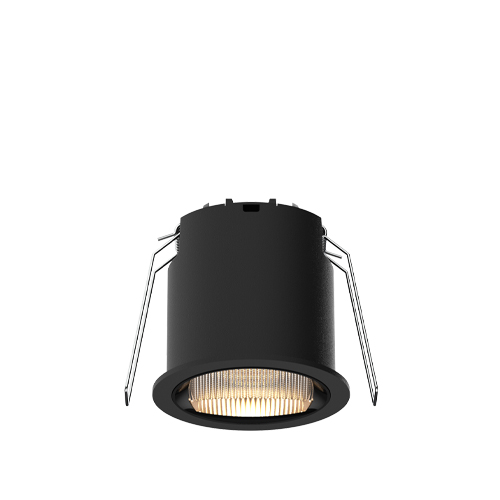

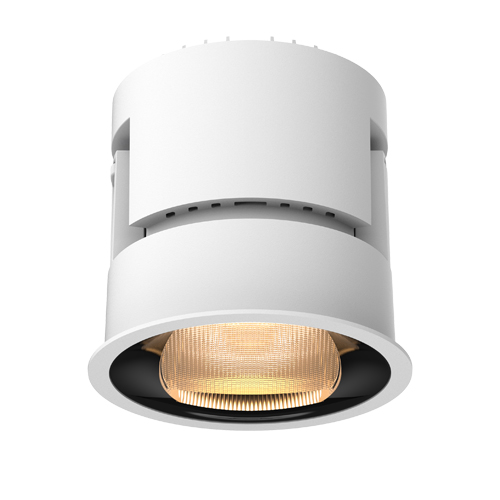

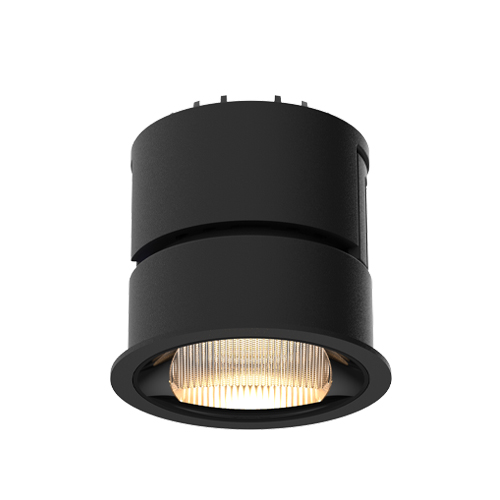

PLANA Pro洗墻筒燈，整燈精致簡潔，采用 LiteBrush光學系統，確保墻頂無暗區，均勻洗墻，同時具有良好的防眩效果。主要適用于酒店及商業公區。

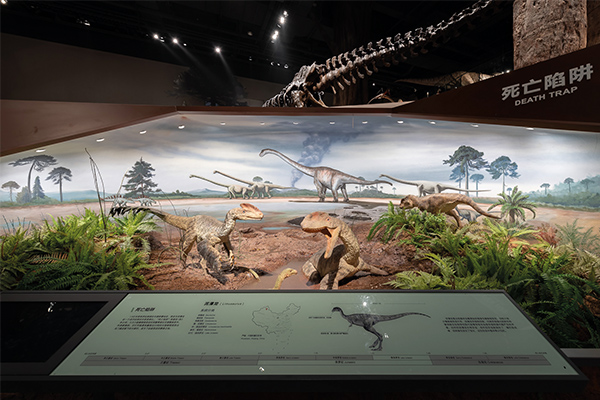

浙江自然博物院安吉館
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 2 2” | 1 Round Trim | LD08 LED 8W | E On-Off D 0-10V Dimming N No Driver | 27 2700K 30 3000K 40 4000K | W Wall Wash | B Black | WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 3 3” | 1 Round Trim | LM13 COB13W LM18 COB18W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black
| WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 3 3” | 1 Round Trim
| LM18 COB 18W | N No Driver | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black
| WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 4 4” | 1 Round Trim | LM18 COB 18W LM25 COB 25W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black | WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 4 4” | 1 Round Trim | LM25 COB 25W | N No Driver | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black | WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 5 5” | 1 Round Trim | LM32 COB 32W LM40 COB 40W | E On-Off D 0-10V Dimming | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black | WT White BK Black |
Model | Size | Trim | LED | Driver | CCT | Beam | Reflector | Finish |
DWP Downlight Wallwasher P series | 5 5” | 1 Round Trim | LM40 COB 40W | N No Driver | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | W Wall Wash | B Black | WT White BK Black |
示例：DWP51-LM32E-30WBWT
