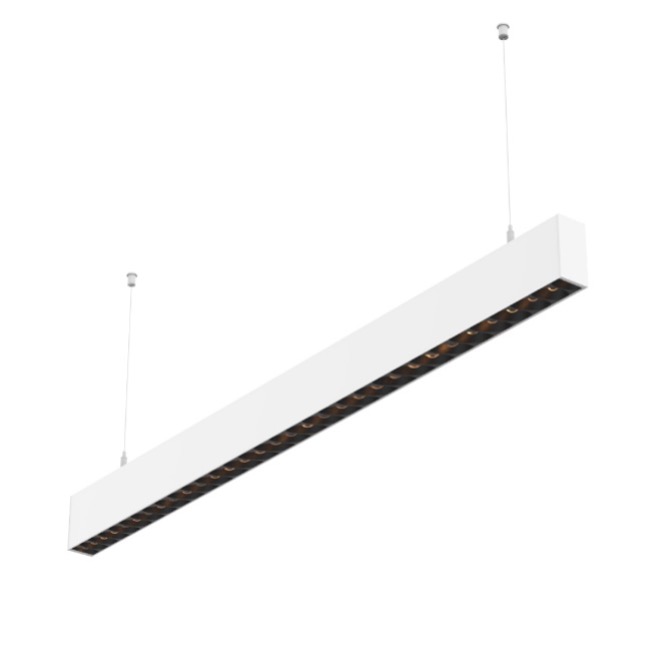

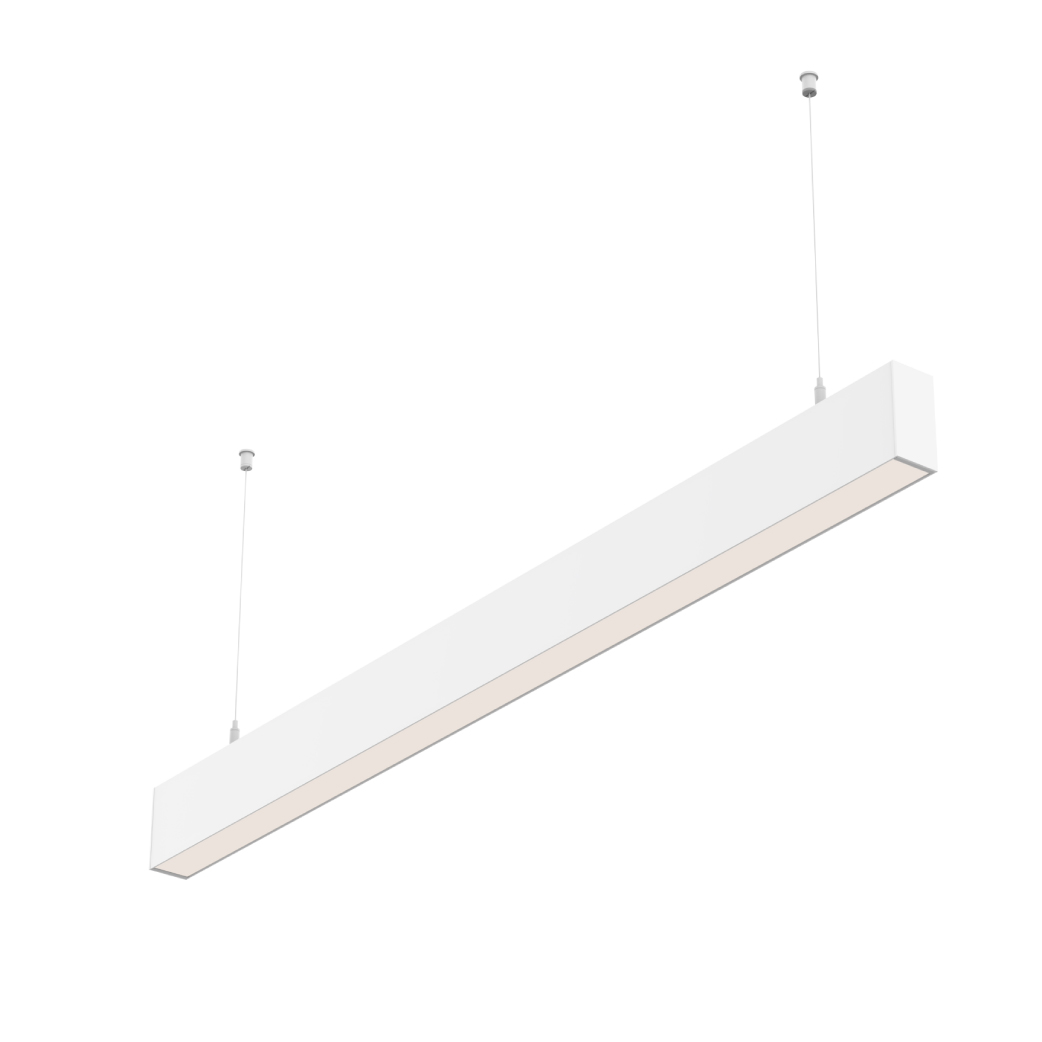

VOLO 吊裝線性燈, 使用鋁型材燈體，外觀簡潔美觀，使用 LED 光源，擁有良好的散熱性，高效節能,防眩好,可首尾拼接,可定制長度。適用于商業辦公場所的照明應用。
嵌入式/格柵安裝/表面安裝/懸吊安裝
高適配性專利軌道接頭確保燈具可適應不同環境需求進行個性拼接
| Model | Comment | Length(mm) | Power(W) | Driver | Beam | CCT | Finish |
OP1S | S Single Directional 下出光 | 12 1200 | 30 30W | E On-Off D 0-10V Dimming A DALI | P 霧面罩 Y 棱晶罩 | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
| Model | Comment | Length(mm) | Power(W) | Driver | Beam | CCT | Finish |
OP1S | S Single Directional 下出光 | 12 1265 | 30 30W | E On-Off D 0-10V Dimming A DALI | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
| Model | Comment | Length(mm) | Power(W) | Driver | Beam Up | Beam Down | CCT | Finish |
OP1S | D Double Directional 上下出光 | 12 1200 | 40 40W (下:30W, 上:10W) | E ON-OFF D 0-10V Dimming A DALI | F Frosted | P 霧面罩 Y 棱晶罩 | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
| Model | Comment | Length(mm) | Power(W) | Driver | Beam Up | Beam Down | CCT | Finish |
OP1S | D Double Directional 上下出光 | 12 1265 | 40 40W (下:30W, 上:10W) | E ON-OFF D 0-10V Dimming A DALI | F Frosted | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
示例：OP1SD-1240E-F340WT
