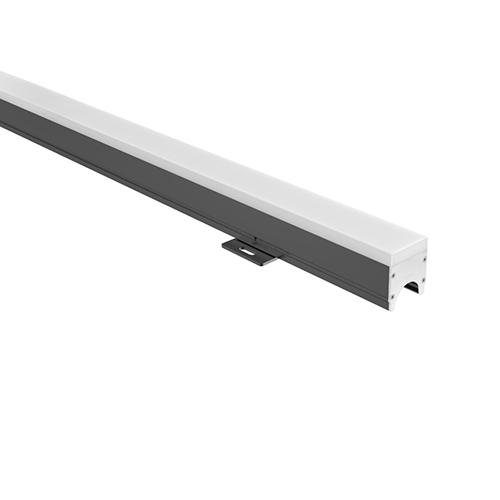

三面出光，配備高質量擴散罩，出光均勻。等間距排布及特殊端蓋處理，連續安裝出光連續且均勻。柔性電纜，自由選擇側面或底部出線，支持 DMX512調光控制，帶自動編址功能，整燈 IP66的防護等級，可廣泛應用于各種建筑照明等。
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELD303-05 ELD305-10 ELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 202 403 806 | ET ON-OFF 24V DC Power Supply | P 三面發光 | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELD303-05 ELD305-10 ELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 202 403 806 | MT DMX512 Dimming 24V DC Power Supply | P 三面發光 | 1 1 Phase B 12 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Phase Controller (m) | CCT | Finish |
ELD303-05 ELD305-10 ELD310-20 | 250 500 1000 | 5(Max) 10(Max) 20(Max) | 18 36 72 | 113 226 451 | MT DMX512 Dimming 24V DC Power Supply | P 三面發光 | 1 1 Phase B 12 Phase | F3 RGBW(3000K) F4 RGBW(4000K) F6 RGBW(5700K) CC TUNNABLE WHITE | BK Black |
示例：ELD310-20MT-PB30BK
