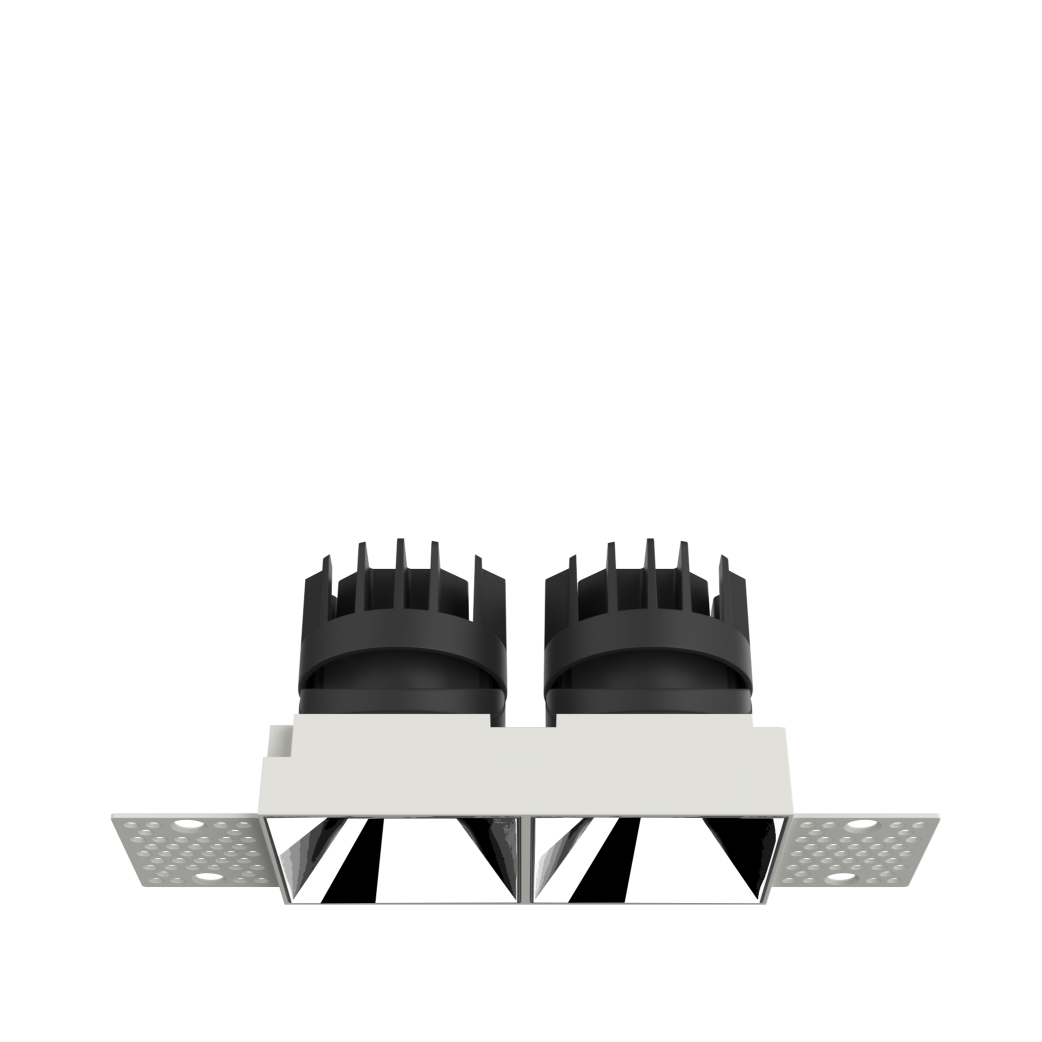

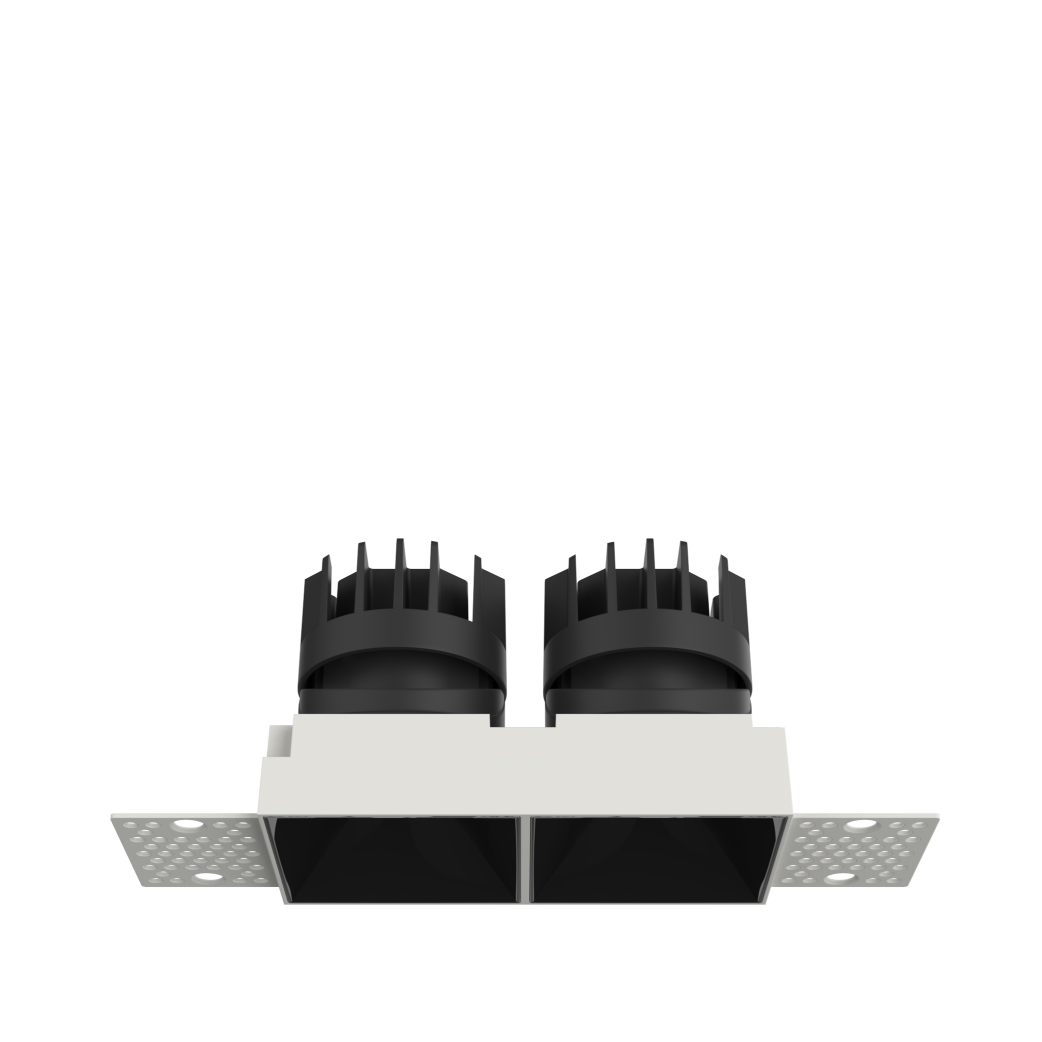

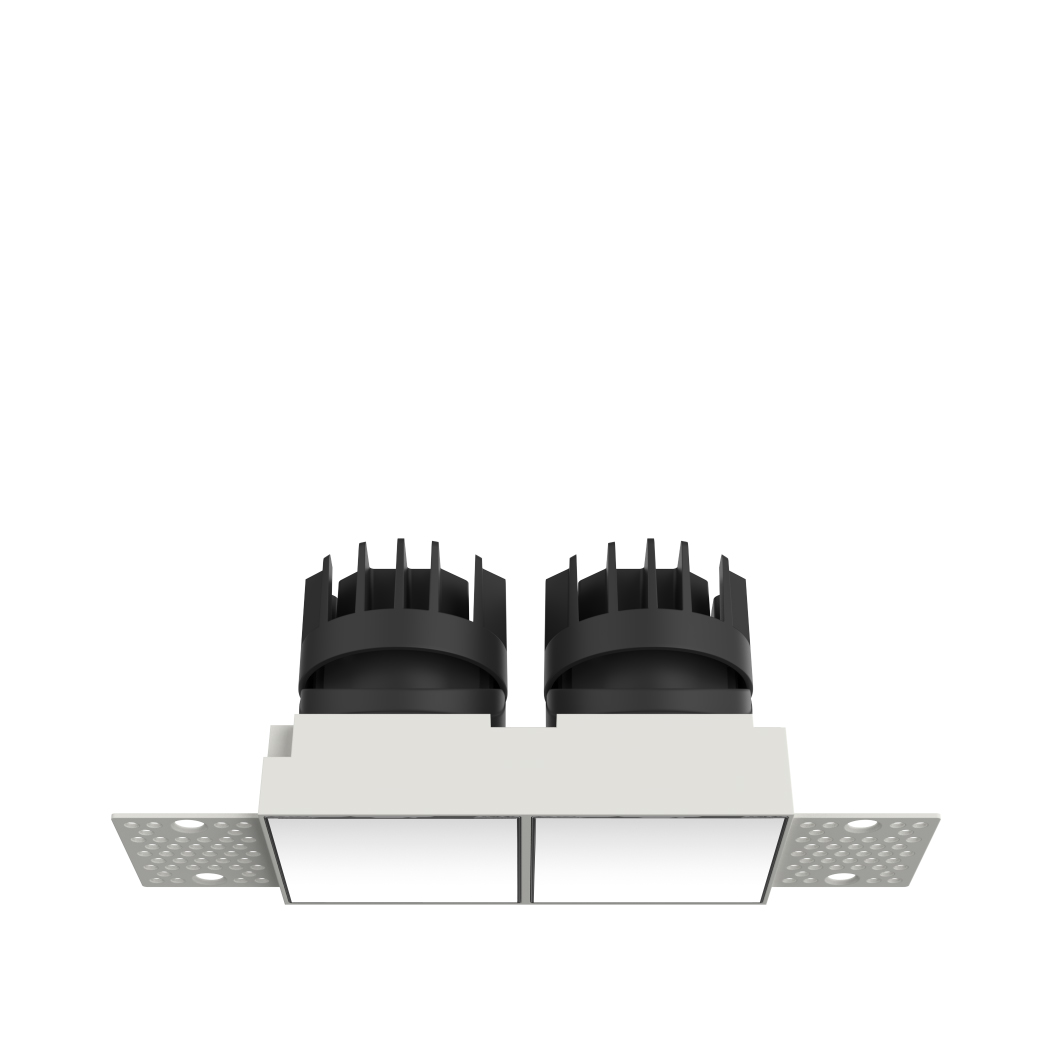

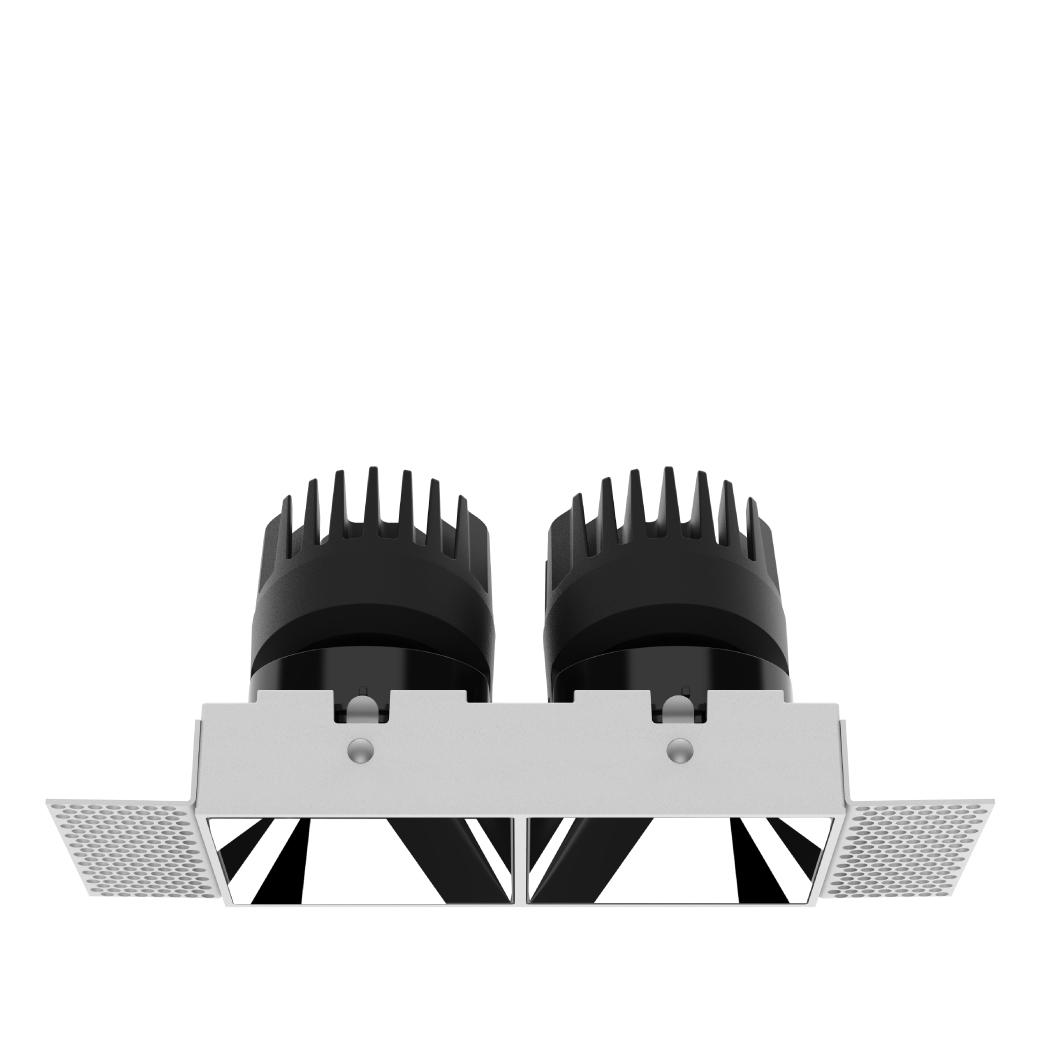

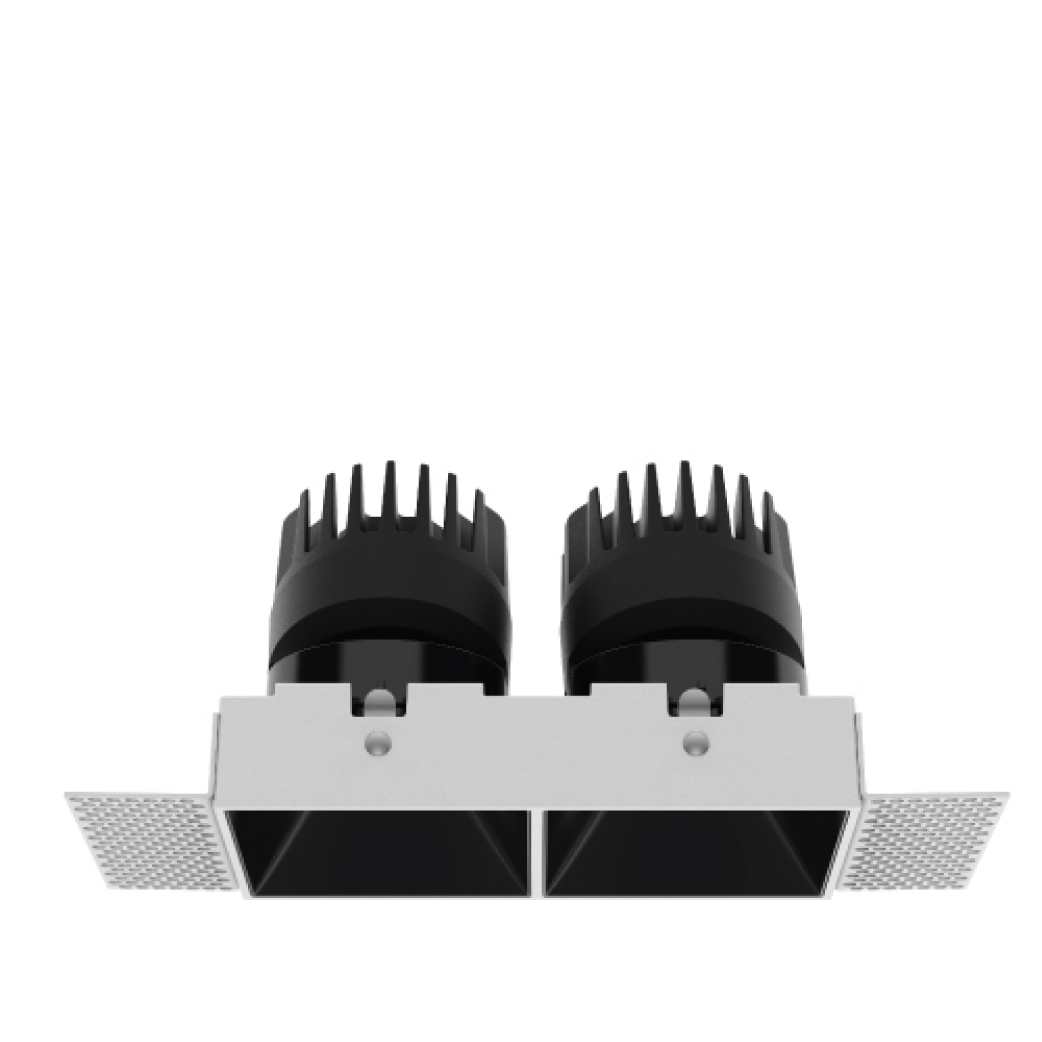

ELANA Pro 方形無邊嵌入式組合燈具，完美融合下照和調角功能一體化。通過透鏡精準配光，并搭配高品質反射器，帶來舒適視覺感受并保證光斑的 完整性。特別適用于高檔酒店，商業及辦公等公共空間。
下照的穩定、調角的靈活，兼而有之

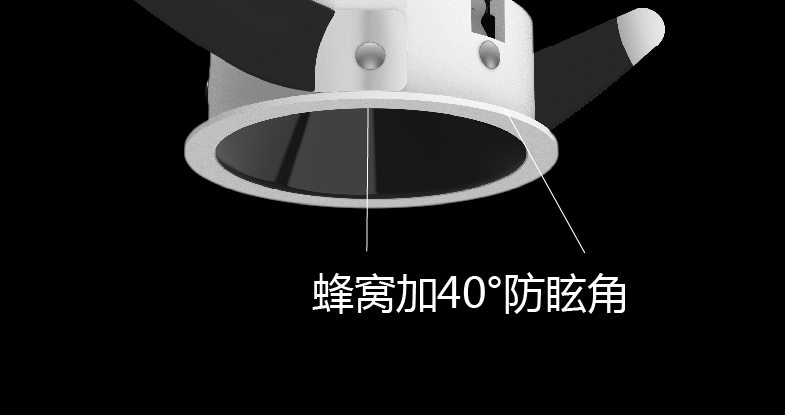

蜂窩+40°防眩光角反射器，雙重保障，提供極致舒適視覺體驗
SieMatic西曼帝克上海旗艦店
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 2 2” | 6 Rectangular Trimless | 205 COB 2*5W 207 COB 2*7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 2 2” | 6 Rectangular Trimless | 207 COB 2*7W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 6 Rectangular Trimless | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 6 Rectangular Trimless | 213 COB 2*13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
示例：MTH36-210-E230SWT,15°出廠自帶蜂窩，其他角度不帶。
