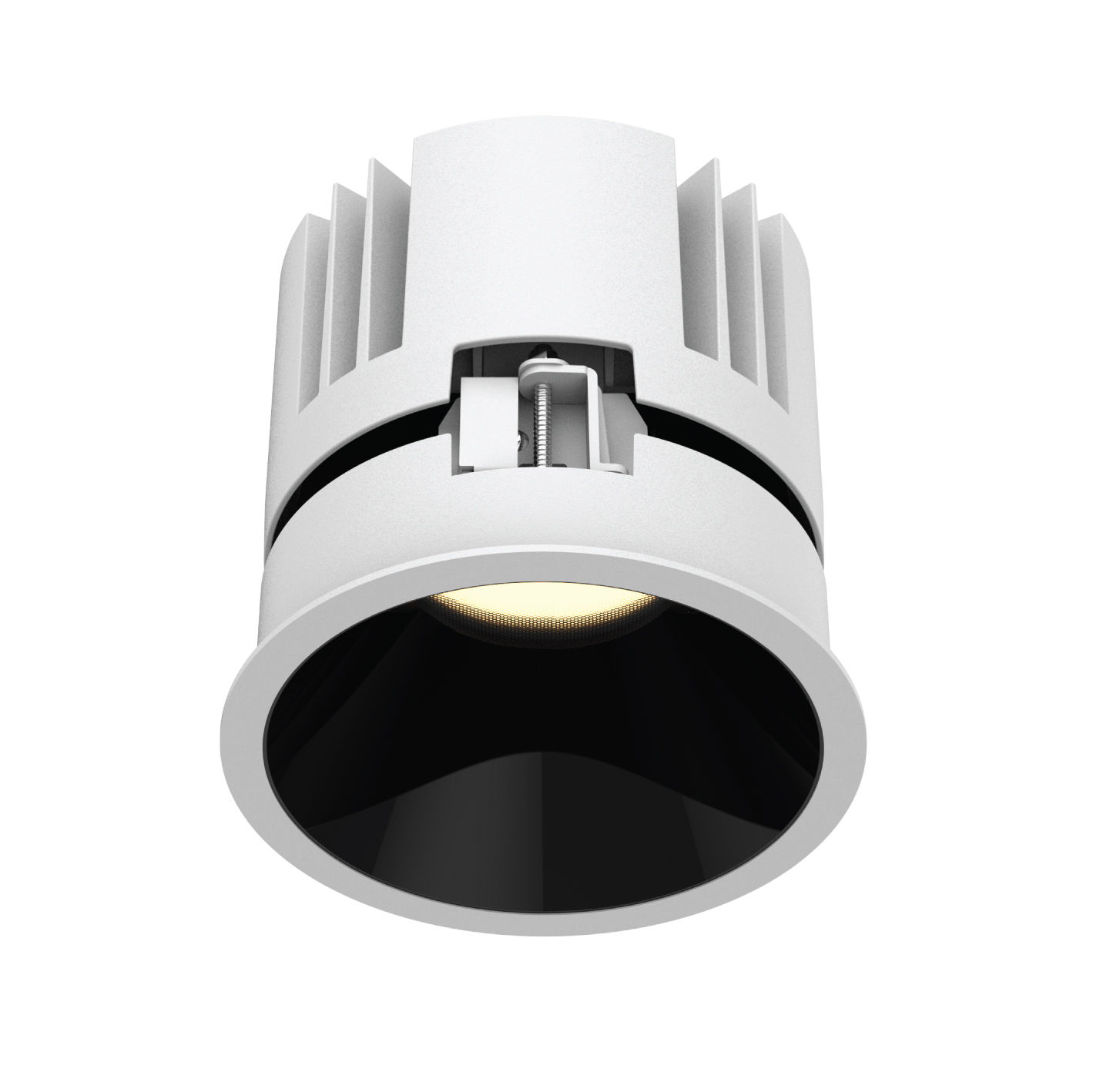

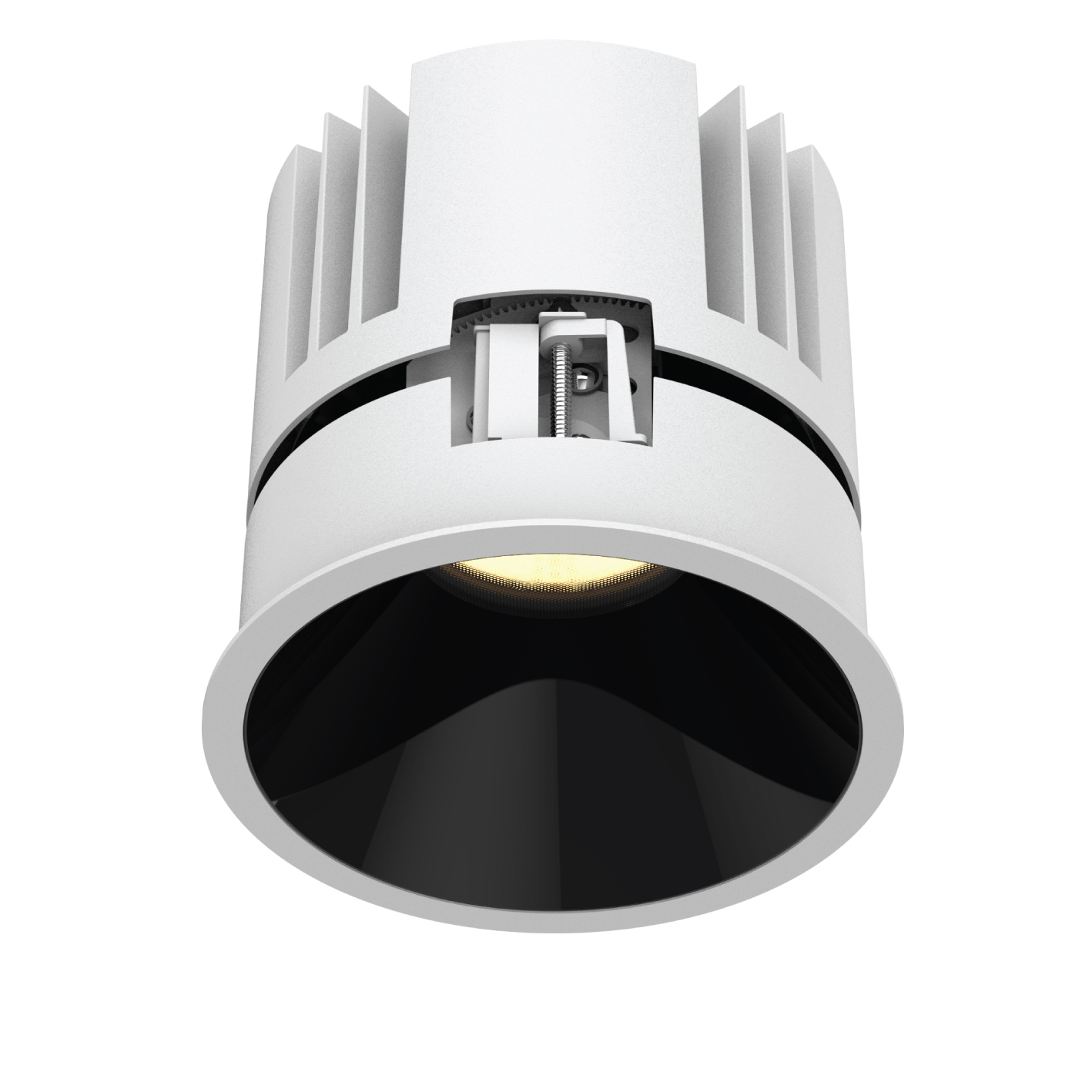

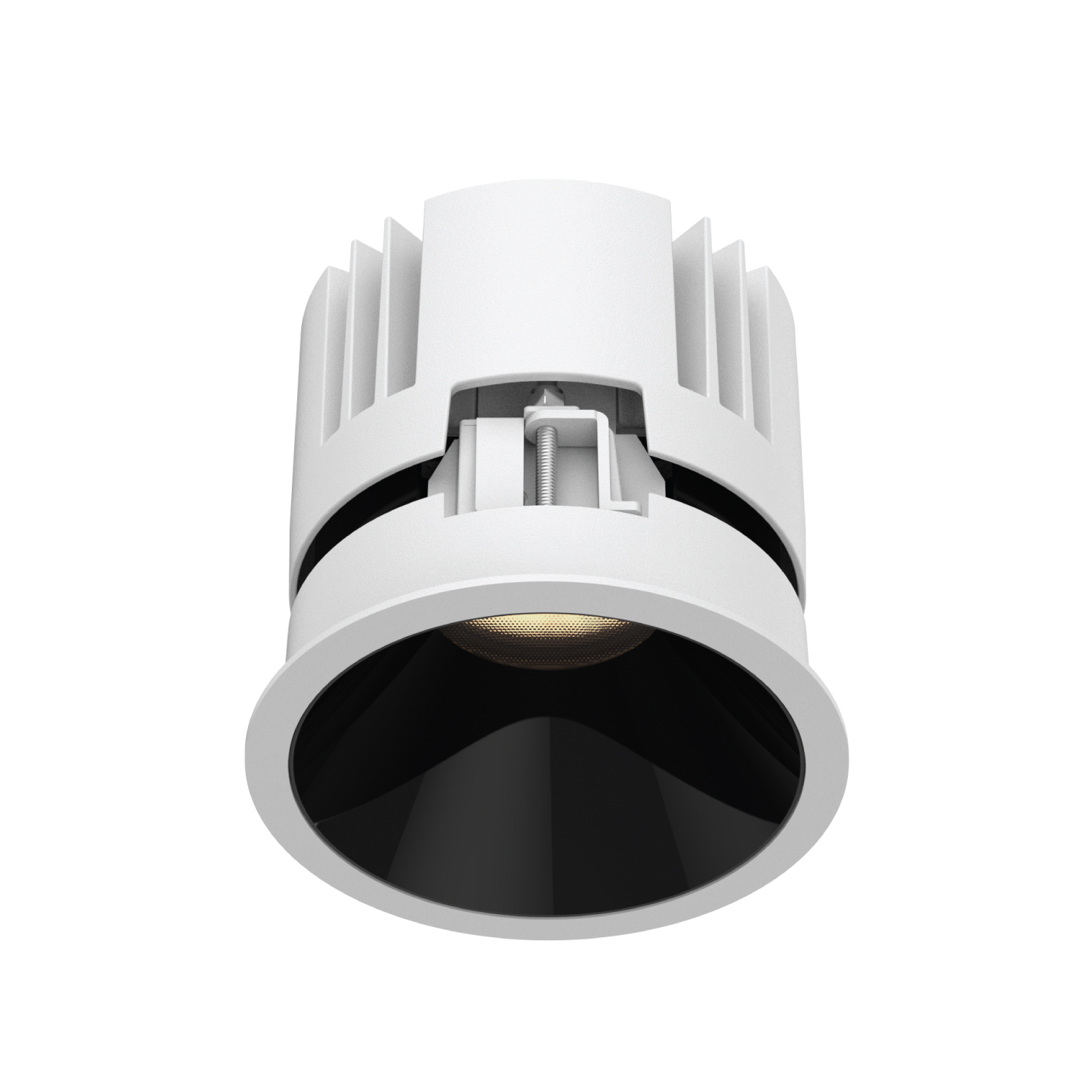

圓形窄邊嵌入式下照筒燈，流線型外觀，精準的透鏡和黑鏡反射器設計，保證出光的同時仍能達到極致的防眩效果。封密式光源腔，最大程度減少潮濕環境對其性能的影響?？勺杂刹鹦恫⒏鼡Q反射器或光學配件，極大的提高了現場的便利性。

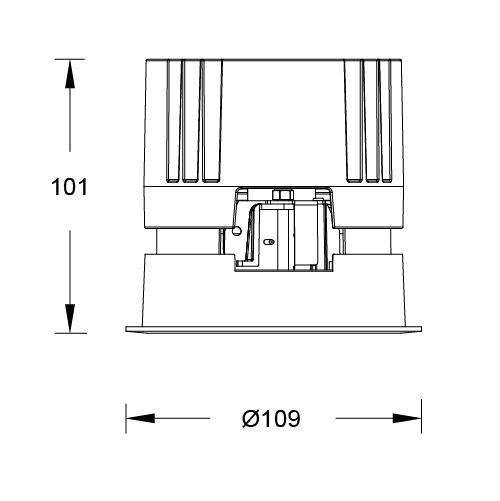

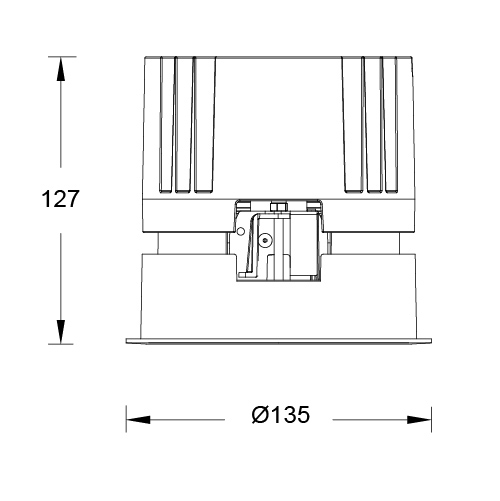

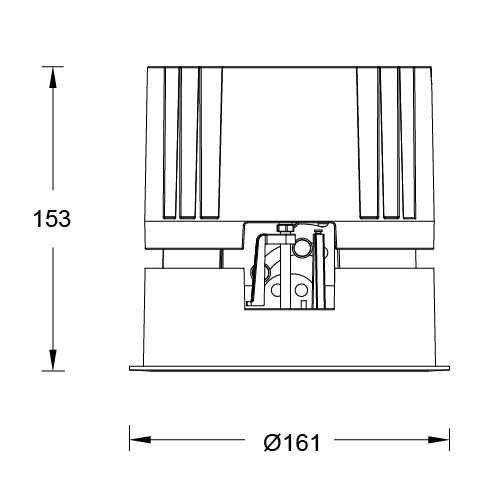

4/5/6寸燈具詳細尺寸圖

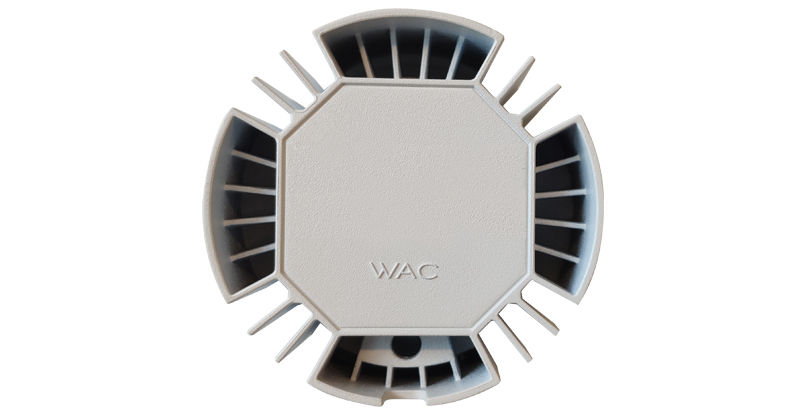

對流式散熱+包圍式煙囪散熱 雙設計
有力保障其在潮濕環境下的性能穩定

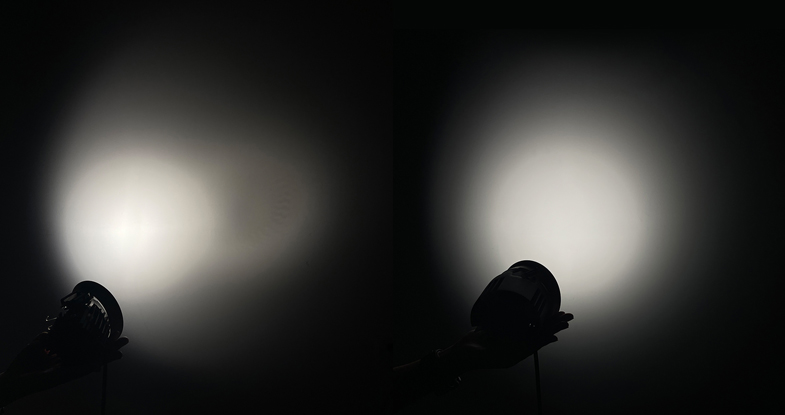

實際點亮展示，光斑干凈、柔和，無雜項光線
VOLTA

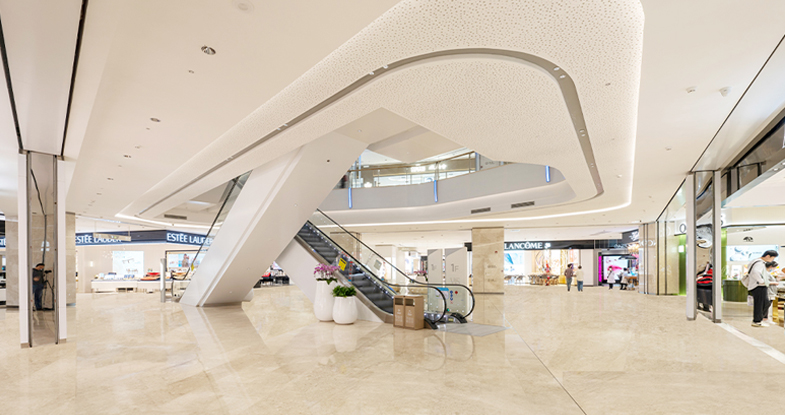

武商夢時代
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 4 4” | 1 Round Trim | LD08 LED 8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 4 4” | 1 Round Trim | LM13 COB 13W LM18 COB 18W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 4 4” | 1 Round Trim | LM18 COB 18W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 5 5” | 1 Round Trim | LD24 LED 24W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 5 5” | 1 Round Trim | LM18 COB 18W LM25 COB 25W LM32 COB 32W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 5 5” | 1 Round Trim | LM32 COB 32W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 6 6” | 1 Round Trim | LD32 LED 32W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 6 6” | 1 Round Trim | LM32 COB 32W LM43 COB 43W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLT Downlight T series | 6 6” | 1 Round Trim | LM43 COB 43W | A DALI N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
示例：DLT61-LM43E-230SWT
